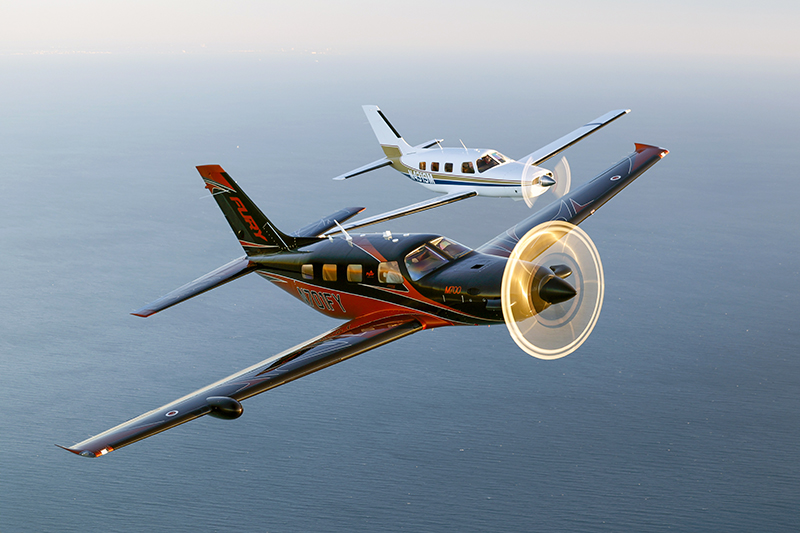

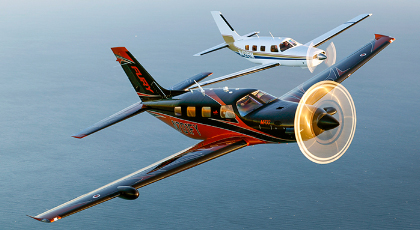

The M700 Fury – Welcome to the Next Generation of Piper Performance.
Meet the new Piper M700 Fury, the first in a new generation of the Piper M-Class family, featuring the powerful Pratt and Whitney PT6A-52 engine, producing 700 shaft horsepower and Garmin’s innovative technology, including Autoland.
At over $1 million less than its closest competitor, the new Piper M700 Fury transcends traditional limits, giving you more power, blistering performance and the luxury of what matters most — time.
| Specifications
|
| 301 ktas cruise with 45 min. reserve |
1,149 nm |
2,128 km |
| 292 ktas cruise with 45 min. reserve |
1,424 nm |
2,637 km |
| 206 ktas cruise with 45 min. reserve |
1,852 nm |
3,430 km |
| Max operating altitude |
30,000 ft |
9,144 m |
| Cabin altitude at 28,000 ft / 7,925 m |
8,244 ft |
2,513 m |
| Rate of climb (sea level) |
3,432 ft per minute |
1,046 meters per minute |
| Landing distance over 50 ft obstacle |
1,950 ft |
594 m |
| Takeoff distance over 50 ft obstacle |
1,994 ft |
608m |
| |
|
|
|
|
Harness the Power of Safety and Performance with the M700 Fury
• Pratt and Whitney PT6A-52 Engine
• HALO Safety System
• Garmin’s Autoland Technology
• Garmin PlaneSync Technology
|
STANDARD EQUIPMENT

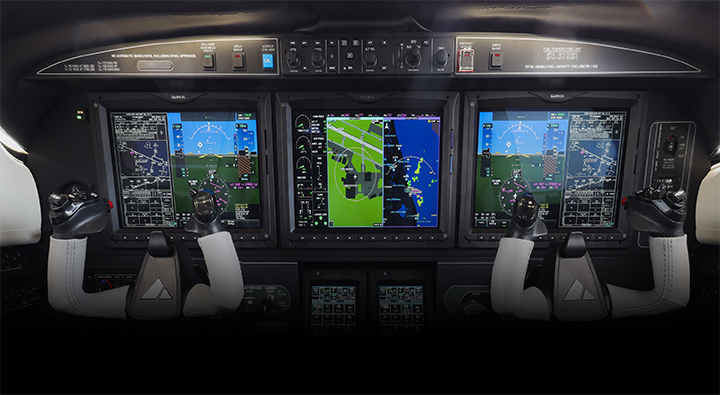

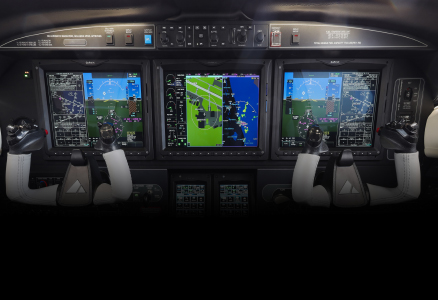

• GARMIN G3000 AVIONICS SUITE with HALO Safety System
• GFC 700 Digital Autopilot
• Dual GTC 575 Touchscreen Cockpit Management Units
• GMA 36B Digital Audio Panel
• GTX 345D Diversity Transponder
• GWX 75 Weather Radar
• GDL60 Datalink
• Garmin FliteCharts
• Garmin PlaneSync™
• Garmin GI-275 Standby
• Integrated Digital Cabin Pressurization
• Flight Into Known Icing (FIKI)
• PiperAire Air Conditioning
• Bose A30 Headsets (2)
• USB A & C Charging Ports
• Rosen Visors
HALO Safety System
• Garmin Emergency Autoland (fully autonomous)
• Auto Throttle
• Radar Altimeter
• Enhanced AFCS Enablement
• SurfaceWatch
• Synthetic Vision
• SafeTaxi
• TerminalTraffic
|
|
|
The Art of M700 Fury's Design

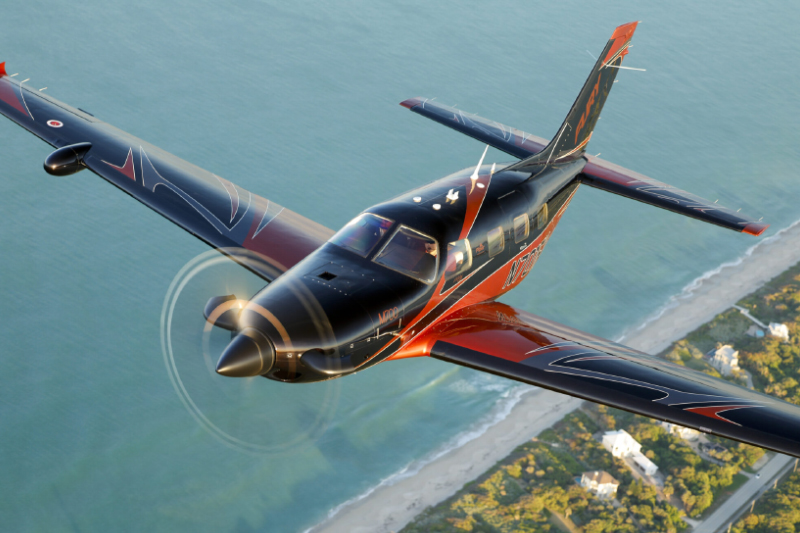

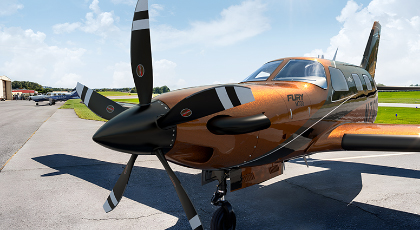

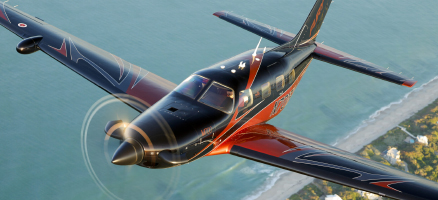

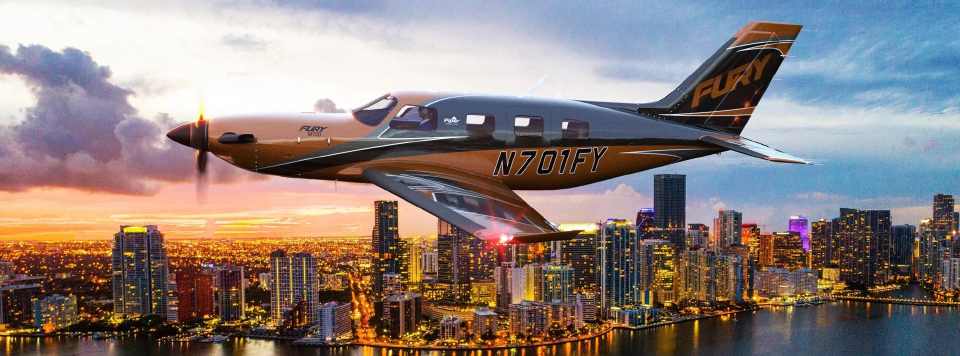

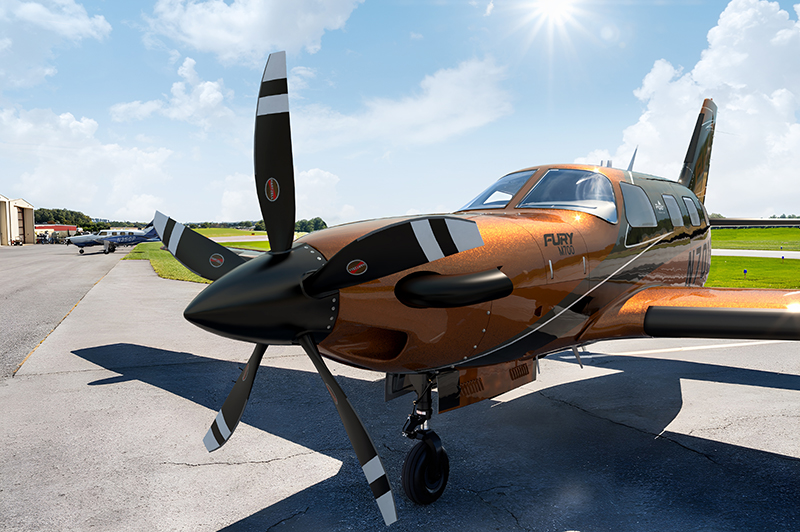

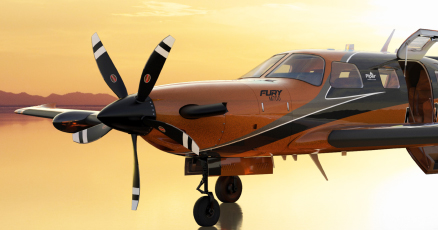

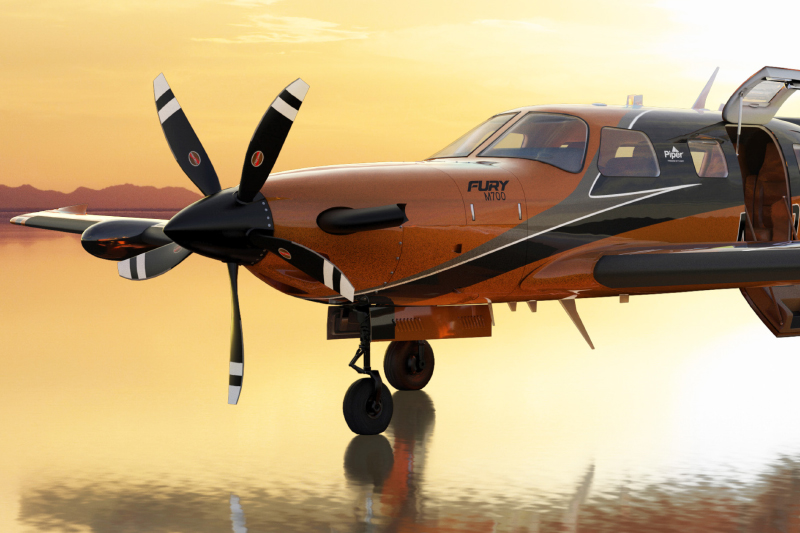

Make your M700 Fury's exterior reflect your unique style through handcrafted customization options and exclusive paint schemes. You can choose bold colors or opt for understated elegance — our dedicated paint team will bring your vision to life.

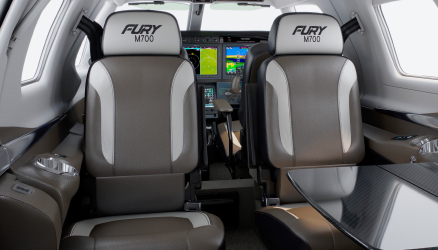

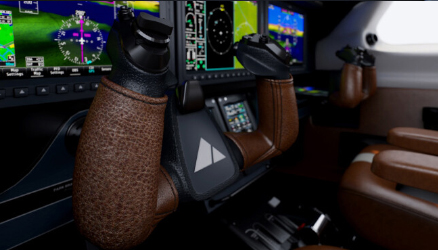

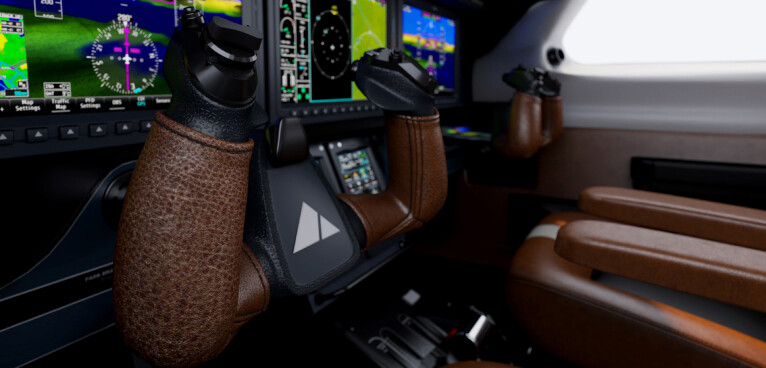

Inside, the M700 Fury is style and innovation defined with the EXP package. Select from various interior palettes, customize specific design elements like stitching and embroidery, and choose from premium leathers in solid or two-tone schemes. Enhanced veneer and trim options add to this aircraft's refined feel. Learn more about
the making of the M700 Fury.
|
Comprehensive Service Network
With a vast network of over 90 authorized service centers worldwide, we ensure that Piper Fury owners have easy access to exceptional maintenance and support wherever they fly.
Advanced Technical Resources
We provide access to extensive technical publications and parts. Piper Fury owners benefit from this resource pool, ensuring that you have all the information and components necessary for optimal aircraft performance.
|
 |
Cabin Dimensions
| Cabin volume |
165 cu ft /4.67 cu m |
| Cabin length |
12 ft 3 in/3,76 m |
| Cabin width |
14ft 1 in/1,25 m |
| Cabin height |
3 ft 11 in/1,18 m |
| Door dimensions |
3 ft 10 in х 2 ft/ 1,16 m х 0,61 m |
| Internal baggage |
20 cu ft (100 lb)/ 0.57 cu m (45 kg) |
|
Weights
| Max ramp weight |
6,050 lb/ 2,744 kg |
| Max takeoff weight |
6,000 lb/ 2,722 kg |
| Max landing weight |
5,800 lb/ 2,631 kg |
| Max zero-fuel weight |
5.050 lb/2,291 kg |
| Standard empty weight |
3,730 lb/ 1,692 kg |
| Fuel capacity, usable |
260 gal/ 984 L |
|
|
 |
 |
|
|
